KM 6520 FR
Electric hob with onset controls with 4 cooking zones for maximum convenience at an attractive entry level price.
KM 6520 FR
Electric hob with onset controls with 4 cooking zones for maximum convenience at an attractive entry level price.
Feature Highlights
- Easy operation – EasySelect
- Attractive design - 574 mmmm wide with all-round frame
- Particularly versatile - 4 cooking zones incl. 1 Vario zone
- Convenient - Auto heat-up for every cooking zone
- Safe - three level residual heat indicator for every cooking zone
Color
‐ Clean steel/Stainless steel
Purchase Support
Monday – Friday
9:00am – 5:00pm
Saturday
10:00am – 4:00pm
Your exclusive advantages
What's Included
Product data sheet
Heating type
Heating type | Electrical |
Construction type
Independent of cooker | • |
Cooking zone
Position | front right |
Type | Single-circuit ring |
Diameter in mm | 145 mm |
Rating in W | 1200 |
Cooking zone
Position | rear right |
Type | Dual-circuit ring |
Diameter in mm | 120/210 mm |
Rating in W | 750/2200 |
Design

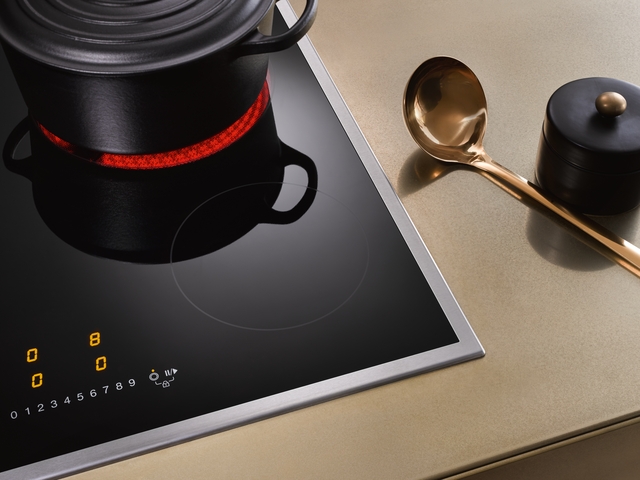

Elegant glass ceramic surface | • |
Ceramic surface colour | Black |
Stainless-steel frame | • |
Optional accessories
Pans | • |
Cleaning convenience
Easy to clean ceramic glass | • |
Technical data
Dimensions in mm (width) | 574 |
Dimensions in mm (height) | 43 |
Dimensions in mm (depth) | 504 |
Casing height incl. connection box in mm | 43 |
Cutout dimensions in mm (width) with surface-mounted installation | 560 |
Cutout dimensions in mm (depth) with surface-mounted installation | 490 |
Weight in kg | 8 |
Total rated load in kW | 6.70 |
Voltage in V | 230 |
Length of supply lead in m | 1.40 |
Safety
Safety switch-off | • |
Lock function | • |
System lock | • |
Fault monitoring | • |
Overheating protection | • |
Residual heat indicator | • |
Pan protection | • |
Cooking zone
Position | front left |
Type | Single-circuit ring |
Diameter in mm | 180 mm |
Rating in W | 1800 |
User convenience

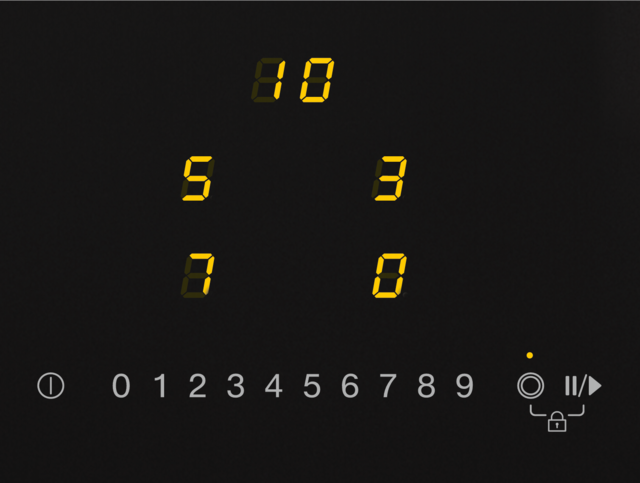

Digital power level display | • |
Display colour | Yellow |
Stop & Go function | • |
Recall function | • |
Minute minder | • |
Safety switch-off | • |
Auto heat-up | • |
Individual setting options (e.g. buzzers) | • |
Efficiency and sustainability
Residual heat utilisation | • |
Cooking zone details
Number of cooking zones | 4 |
Cooking zone
Position | rear left |
Type | Single-circuit ring |
Rating in W | 1500 |
